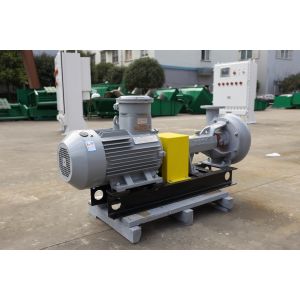

Engineered for mid-volume drilling operations, this model delivers 200m³/h flow and 33m head at 1480 RPM (50Hz) or 1780 RPM (60Hz). Featuring patented mechanical seals (Patent ZL200720079857.2) with 6x longer service life than standard seals, it minimizes leakage risks in abrasive slurries. The compact 1806×528×884mm dimensions and 785kg weight enable easy integration into mobile solids control systems. Supports both direct and belt drive configurations for flexible power transmission. Ideal for desander feeding and mud mixing applications.
Features
Patented Seal Technology - Service life is 6 times longer than an ordinary mechanical seal. (Patent No. ZL200720079857.2)
High Efficiency - The impeller and pump shell port are designed with optimal streamlining.
Long Service Life - The overflow parts are made of highly wear-resistant cast iron.
Non-clogging - The impeller is designed with a wide flow path.
Patented Appearance - Compact and reasonable structure (Patent No. ZL200730094452.1).
| Model | Flow (m³/h) | Head (m) | Rotational Speed(rpm) | Efficiency (%) | Power (kW) | Weight (kg) | L*W*H (mm) | ||
| / | / | / | 50Hz | 60Hz | / | Shaft Power | Motor Power | / | / |
| SB5 × 6J-12½ | 200 | 33 | 1480 | 1780 | 64 | 28 | 45 | 785 | 1806×528 ×884 |
