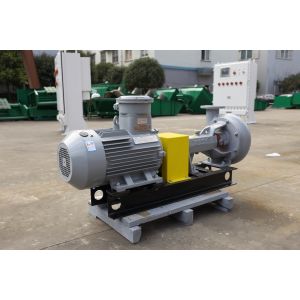

XBSY currently has five major types of centrifugal mud pumps, SB6×8, SB5×6, SB4×5, SB3×4, and SB2×3, with more than 80 specifications from 4kW to 75kW according to the matching power. There are two structural forms of direct connection and belt drive, which can adapt to the needs of 50 and 60Hz power grids, and there are two standards of the metric and imperial systems respectively. There are two kinds of rotary direction: forward and reverse.
Features
Patented Seal Technology - Service life is 6 times longer than an ordinary mechanical seal. (Patent No. ZL200720079857.2)
High Efficiency - The impeller and pump shell port are designed with optimal streamlining.
Long Service Life - The overflow parts are made of highly wear-resistant cast iron.
Non-clogging - The impeller is designed with a wide flow path.
Patented Appearance - Compact and reasonable structure (Patent No. ZL200730094452.1).
| Model | Flow (m³/h) | Head (m) | Rotational Speed(rpm) | Efficiency (%) | Power (kW) | Weight (kg) | L*W*H (mm) | ||
| / | / | / | 50Hz | 60Hz | / | Shaft Power | Motor Power | / | / |
| SB5 × 6J-11½ | 160 | 28 | 1470 | 1780 | 62 | 19.7 | 30 | 650 | 1746×528×844 |
